Vented Lead Dormer
in Bakewell

A complete Code 5 lead dormer covering in Bakewell, formed with seven wood-roll roof bays, welted lead cheeks, bespoke edge restraint and a dedicated ventilation route above the insulation layer.

BAKEWELL · DERBYSHIRE · CODE 5 LEAD · VENTED ROOF BUILD-UP · LEAD DORMER

Explore the Project

01 — THE PROJECT

A dormer designed from the roof build-up outwards

This Bakewell project involved the complete lead covering of a newly formed rear dormer as part of a loft conversion.

The dormer interrupts the existing Welsh slate roof and introduces several different weathering zones: the principal roof covering, vertical cheeks, front apron, leading edge, side drips and junctions with the surrounding slate.

Its construction also required a deliberate ventilation strategy. Restricted space towards the apex led to purpose-made Nicholson roof vents being incorporated to maintain the specified airflow route above the insulation layer.

The finished dormer therefore combines traditional sheet-lead detailing with a project-specific approach to ventilation, movement and exposed-edge restraint.

LEAD DORMERS →
LEAD DORMER GUIDE →
LEADWORK GUIDES →

LOCATION

Bakewell

PROGRAMME

Approx. 5 Days

LEAD CODE

Code 5

ROOF LAYOUT

7 Lead Bays

02 — THE DORMER

A complete weathering envelope

A dormer is not simply a small flat roof sitting within a pitched roof.

It introduces horizontal and vertical surfaces, exposed leading edges, side junctions and transitions back into the main roof covering.

On this project, the leadwork therefore had to be considered as one complete assembly rather than as separate roof, cheek and apron details.

The package included

  • Code 5 dormer roof covering
  • Seven individual roof bays
  • Wood roll joints
  • Welted Code 5 cheek panels
  • Copper cleats within cheek details
  • Front apron to Welsh slate
  • Side drips
  • Bespoke stainless-steel leading-edge clip
  • Building-paper separation layer
  • Nicholson ventilation details

03 — THE BUILD-UP

Ventilation was part of this roof design

The moisture strategy for a dormer depends on the complete construction beneath the external covering.

On this particular project, the specified arrangement incorporated a ventilated void above the insulation.

Restricted space at the upper junction meant that purpose-made Nicholson roof vents were used to maintain airflow through the build-up where a more conventional opening would have been difficult to achieve.

This ventilation strategy is separate from the movement requirements of the sheet lead itself. The lead covering still requires suitable bay dimensions, joints, support and restraint regardless of the thermal construction beneath it.

A different dormer build-up may require a different condensation-control strategy, so the arrangement used here should be understood as project-specific rather than a universal dormer detail.

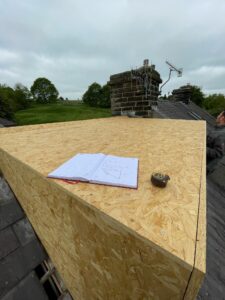

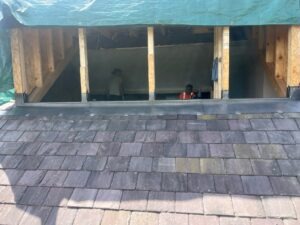

Formed Dormer

The new structure before completion of the full external lead weathering system.

Seven Bays

Wood rolls divide the roof into individual Code 5 sheets and establish the finished roof geometry.

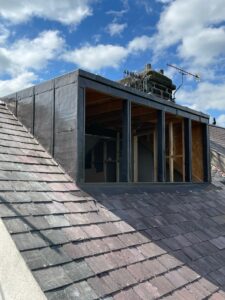

Completed Dormer

Roof, cheeks, apron, drips and leading edge operating as one coordinated lead envelope.

04 — VENTILATION

Maintain the designed air path

The project incorporated a defined ventilated zone above the insulation.

The challenge was maintaining that route where the dormer construction approached the restricted upper junction beneath the main roof.

Purpose-made Nicholson vents provided a solution at this interface, allowing the specified ventilation route to continue without compromising the external lead covering.

The important principle is not simply to add vents to a lead roof. It is to preserve the moisture-control strategy intended for the particular roof build-up.

05 — WIND + RESTRAINT

Control the exposed edges

Dormers create prominent edges above the main roof plane.

On this project, the leading edge incorporated a purpose-made stainless-steel restraint detail to create a consistent line and secure the lead covering.

The side drips were also lapped over the cheeks and tabbed as part of the project-specific approach to the exposed perimeter.

These restraint details complement the sheet layout above: the lead still needs freedom to move within the bay arrangement while vulnerable edges are appropriately controlled.

06 — SIGNATURE DETAIL

Seven wood-roll roof bays

The defining visual feature of the finished dormer is the repeated rhythm of the roof bays.

Seven individual Code 5 sheets are separated by traditional wood-roll joints across the width of the dormer.

The rolls do more than create an architectural pattern. They divide the overall roof into individual pieces, establishing a controlled sheet layout through which movement can be accommodated.

The result is a roof whose technical organisation remains clearly visible in its finished form.

07 — SUPPORT + VENTILATION

Prepare the roof beneath the lead

  • Dormer roof and cheek construction inspected before lead installation
  • Junction with the surrounding Welsh slate roof reviewed
  • Lead bay layout established across the dormer width
  • Continuous support prepared for the roof leadwork
  • Suitable building-paper separation layer installed
  • Wood rolls formed to create seven separate roof bays
  • Ventilated zone maintained above the insulation as specified
  • Purpose-made Nicholson vents incorporated at the restricted upper junction
  • Cheek substrates prepared for welted panel cladding
  • Front and side perimeter details set out before installation

08 — LEADWORK INSTALLATION

Forming the complete dormer envelope

  • Code 5 rolled lead installed to the principal dormer roof
  • Seven separate bays formed around timber rolls
  • Roof sheets set out with movement considered within the overall arrangement
  • Dormer cheeks clad in Code 5 lead
  • Cheek coverings formed using welted panel construction
  • Copper cleats incorporated into the cheek details
  • Front apron formed onto the adjoining Welsh slate roof
  • Bespoke stainless-steel restraint formed to the leading edge
  • Side drips formed over the cheek coverings
  • Project-specific tabs incorporated at exposed perimeter details
  • Lead dressed neatly around the dormer geometry
  • Completed covering coordinated with the surrounding slate roof

09 — MATERIALS

A complete dormer material package

  • Code 5 rolled lead sheet
  • Timber wood rolls
  • Building-paper lead underlay
  • Copper cleats and compatible fixings
  • Purpose-made stainless-steel edge restraint
  • Nicholson roof ventilation components
  • Associated lead-compatible finishing materials

CODE 5 LEAD →
WOOD ROLLS →
LEAD UNDERLAY →
LEADWORK FIXINGS →
LEAD SIZING + ORDERING →

10 — THE CRAFT

Horizontal roof. Vertical cheeks. One lead system.

  • Lead roof setting out
  • Wood-roll formation
  • Lead dressing
  • Welted cheek construction
  • Lead cladding
  • Copper cleat detailing
  • Apron formation
  • Edge restraint fabrication
  • Side drip detailing
  • Ventilation coordination
  • Integration with Welsh slate

A lead dormer brings several different sheet-lead techniques together within a small area. The quality of the finished work depends on those details being designed as parts of one envelope rather than completed independently.

11 — PROJECT RECORD

Ventilate.
Divide.
Clad.
Restrain.

The Bakewell image record follows the dormer from the prepared structure through formation of the seven-bay lead roof and into the finished cheeks, apron and perimeter details.

It provides a particularly useful example of how the external lead covering and the construction strategy beneath it need to be resolved together without confusing their separate functions.

12 — LEAD DORMERS

A dormer is a junction, not just a roof

A lead dormer combines several fundamentally different details within a compact envelope.

The roof sheets need suitable support and movement allowance. The cheeks must shed water vertically while remaining secure. The apron must transition back into the main roof covering. Exposed edges require appropriate restraint.

That is why a dormer should be designed as one integrated weathering system rather than a series of unrelated flashings.

Lead Dormers →
Lead Dormer Windows Guide →
Leadwork Guides →

13 — VENTILATED CONSTRUCTION

Moisture strategy belongs to the complete roof build-up

Ventilation and lead-sheet movement solve different technical problems.

On this dormer, the roof construction was arranged with a ventilated void above the insulation and the upper junction was detailed to preserve that air route.

The lead sheets above still required suitable bay dimensions, fully supported substrates, joints and fixings.

On another dormer, the thermal and moisture design may be different. Ventilation should therefore follow the intended roof build-up rather than being added automatically because the outer covering happens to be lead.

Leadwork Standards →
BS 6915 Guide →
BS EN 12588 Guide →

14 — WHAT THIS PROJECT SHOWS

The outer lead cannot be designed in isolation

The most useful lesson from the Bakewell dormer lies beneath the finished metalwork.

A visually successful lead dormer still depends on what happens below the sheet: the support, insulation strategy, moisture control, ventilation route and geometry of the substrate.

Above that build-up, the lead has its own requirements for sheet division, movement, fixing and edge restraint.

The completed dormer works because those different technical layers were coordinated rather than treated as the same problem.

PROJECT TAKEAWAYS

  • The roof covering and moisture strategy perform different functions.
  • This project incorporated a deliberately ventilated roof build-up.
  • Seven wood-roll bays divide the principal roof into manageable sheets.
  • Vertical cheeks require different detailing from the horizontal roof.
  • Welted panels provide a clean approach to lead cheek cladding.
  • Exposed edges require considered restraint.
  • The apron must integrate directly with the surrounding slate roof.
  • Code 5 was selected for this particular dormer specification.

15 — FREQUENTLY ASKED

Lead dormer questions

What lead code was used on this dormer?

Code 5 rolled lead sheet was used for the roof covering and cheek cladding on this Bakewell project. The appropriate lead code for another dormer depends on the individual detail, sheet dimensions and specification.

Why are the roof sheets divided into bays?

The bay arrangement divides the overall roof into individual sheets and provides a controlled way of accommodating movement through the roof layout.

Why were wood rolls used?

Wood rolls create the raised longitudinal joints between adjoining lead sheets and form part of the traditional sheet layout used on this roof.

Does every lead dormer need ventilation?

No. The moisture-control strategy depends on the complete construction. This project was specifically designed with a ventilated zone above the insulation, so the ventilation route formed an important part of the dormer build-up.

Why were Nicholson vents used?

The restricted geometry at the upper junction required a practical way of maintaining the specified ventilation path within the available space.

Can lead be used on dormer cheeks?

Yes. On this project the cheeks were covered using welted Code 5 lead panels secured with appropriate cleats and fixings.

Why was stainless steel used at the front edge?

A purpose-made stainless-steel restraint was formed for this project to create a consistent and secure leading-edge detail.

THE LEAD LADS® / PROJECT ARCHIVE

Seven bays. Vented build-up. Complete lead envelope.

The Bakewell dormer forms part of The Lead Lads® project archive documenting traditional sheet-lead detailing across dormers, bays, flat roofs, gutters, canopies, heritage buildings and specialist architectural work.

Its defining feature is the relationship between the visible leadwork and the construction beneath it: seven Code 5 roof bays, welted cheeks, carefully restrained edges and a ventilation path designed specifically around the dormer build-up.
